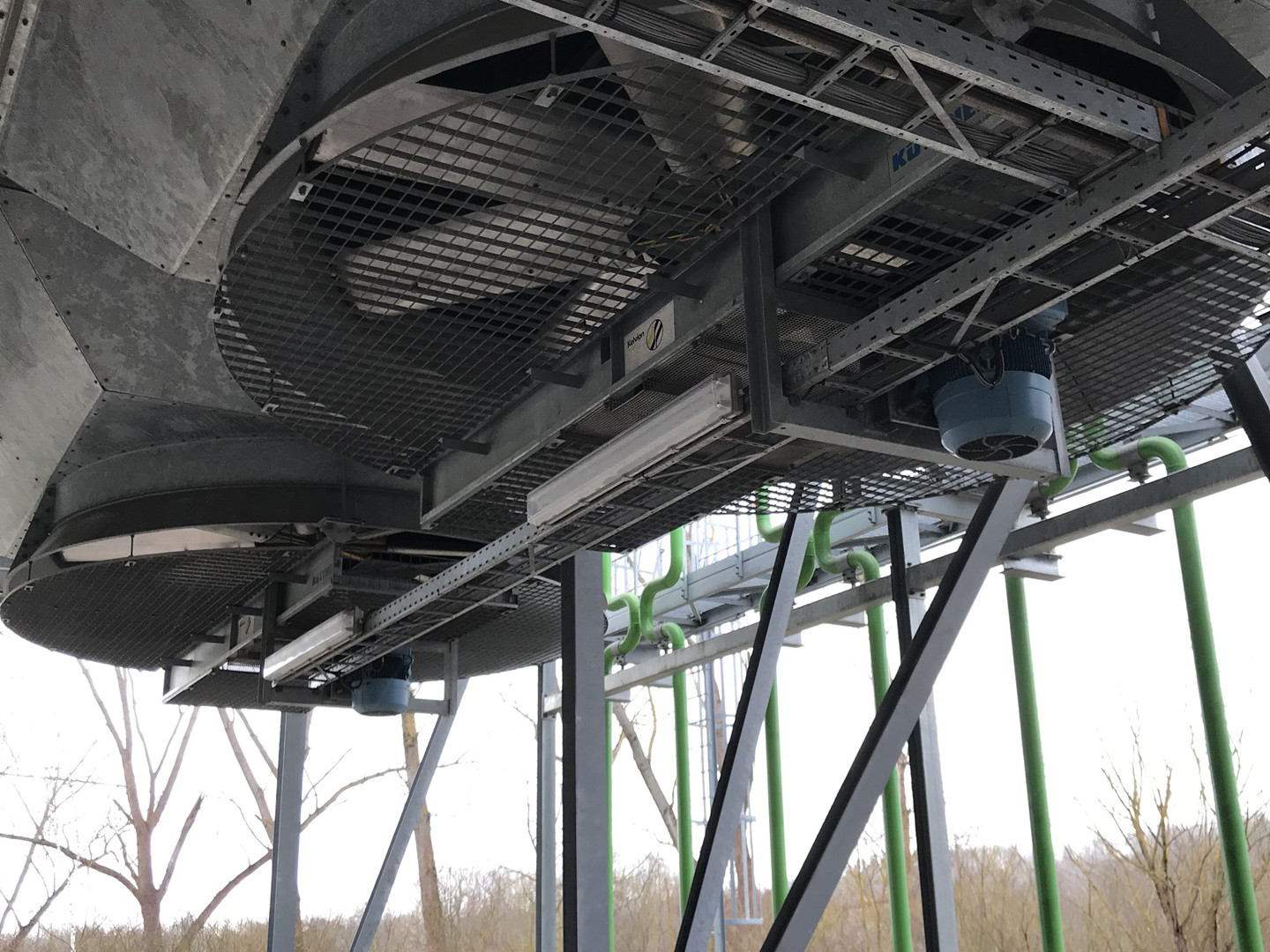

What can KSK System Kühl Technik do for you in the field of dry cooling?
Dry coolers are often an integral part of our closed recooling circuits. They offer many advantages: With efficient EC motor management, desired temperature levels can be easily controlled (even without a frequency converter). Since this is not wet cooling, the 42nd BImSchV does not apply to the operation of the system, meaning that Legionella and severe contamination of piping and units are a thing of the past. Dry coolers are often easy to install and maintain. The ongoing operating costs for a dry cooler result from fan power consumption—there are no evaporation losses, biocides, or chemicals involved.
Precisely tailored.
We do not manufacture the dry coolers we use ourselves, but work closely with a network of reliable partner companies. When designing dry coolers, several important points must be considered. In addition to cooling capacity, temperature levels, and airflow rates, particular attention is paid to requirements regarding noise emissions and local space constraints. Material selection also involves many considerations. We take these and many other factors into account during the design process to configure a dry cooler perfectly tailored to your application.
Perfectly integrated.
Depending on the context in which you have ordered a dry cooler from us, installation can be carried out on-site by our specialized staff. This ensures that the new dry cooler is perfectly integrated into an existing or new recooling system. We are also happy to handle the peripheral system engineering, such as a steel substructure, walkways and access routes for installation and maintenance work, electrical and water connections, and much more.
Your contacts
Olaf Huscher, Dipl.-Ing.
Partner and Managing Director
+49 (0) 2364 10539-0
huscher@kskgruppe.de
Andreas Höwedes, M.Sc. in Industrial Engineering
Partner and Managing Director
+49 (0) 2364 10539-0
hoewedes@kskgruppe.de
Table of contents
- Hybrid and Adiabatic Dry Coolers
-
Introduction to Dry Coolers
- What Are Dry Coolers?
- How Adiabatic Dry Coolers Work
- Advantages of Industrial Dry Coolers
Hybrid and Adiabatic Dry Coolers
In today’s industrial landscape, efficient cooling solutions are essential for ensuring optimal operating conditions and boosting productivity. This article explores the world of dry coolers, particularly hybrid and adiabatic systems, and offers practical tips on how to find the best units for your specific needs online. Learn how these advanced cooling systems can not only reduce your operating costs but also contribute to sustainability.
Introduction to Dry Coolers
What Are Dry Coolers?
Dry coolers are highly efficient heat exchangers used to remove heat from a process or system without evaporating water. At the heart of a dry cooler is a finned heat exchanger through which a hot fluid—often water or a glycol solution—flows. A powerful fan draws in ambient air and directs it through the fins of the heat exchanger, where thermal energy is transferred from the fluid to the air. This cooling process is particularly advantageous because it reduces water consumption to a minimum, thereby enabling sustainable cooling. The design of a dry cooler is engineered for robustness and durability, often featuring a galvanized steel housing to ensure reliable performance even under demanding environmental conditions.
How Adiabatic Dry Coolers Work
Adiabatic dry coolers expand upon the basic operation of traditional dry coolers by pre-humidifying the intake air. Before the outside air reaches the heat exchanger, it is enriched with a fine water mist via special humidification pads or spray nozzles. This process lowers the air temperature through adiabatic evaporative cooling, thereby supplying cooler air to the heat exchanger. The result is a significant increase in cooling efficiency, particularly at high outdoor temperatures, without the dry cooler itself having to directly evaporate water to cool the process fluid. This technology makes it possible to achieve lower process temperatures even in critical applications such as data center cooling or industrial processes, while optimizing the energy consumption of the entire chiller system.
Advantages of Industrial Dry Coolers
Industrial dry coolers offer a wide range of benefits that make them a preferred solution for numerous applications, from data centers to process cooling in the MW capacity range. One of the main advantages is the significant water savings compared to evaporative coolers, as they rely primarily on air as a cooling medium. This not only leads to lower operating costs but also reduces the environmental impact. The reliability and durability of these units are also worth highlighting, as they guarantee a long service life thanks to robust materials and easy maintenance. Furthermore, modern dry cooler solutions contribute to energy efficiency by being equipped with highly efficient fans and optimized heat exchangers to reduce energy consumption and thus further optimize costs. The flexibility in the power range from 200 kW up to 2 MW enables a customized solution for virtually any project.
Applications of Dry Coolers
Industrial applications of adiabatic dry coolers
Adiabatic dry coolers are used in a wide range of industrial applications where efficient process cooling is essential. They are ideal for cooling machinery and equipment in production facilities, chemical processes, or power plants. In these environments, the dry cooler can handle extremely high thermal loads—often in the MW range—while ensuring a stable temperature of the process fluid, making it an optimal solution for industrial applications. The adiabatic operating principle increases efficiency, particularly at high ambient temperatures, by pre-cooling the intake air and thereby maximizing the cooler’s performance. This contributes to the reliability and longevity of the entire system and ensures that production can continue without interruptions. The flexibility of these coolers, with a capacity range from 200 kW to 2 MW, enables a customized solution for nearly any industrial project requiring robust cooling.
Versatile cooling systems with dry coolers
The versatility of dry coolers, in both their hybrid and adiabatic designs, makes them an optimal choice for a wide variety of cooling systems beyond data centers and specific industrial applications. They are frequently used in HVAC systems for large buildings, in the cooling of condensers for refrigeration units, or even in maintaining optimal environmental conditions in warehouses. The ability to adapt the dry cooler to varying humidity and temperature conditions—by regulating the airflow or activating adiabatic pre-humidification—highlights their adaptability. These coolers ensure efficient liquid cooling and, thanks to their low energy consumption and minimal water usage, contribute significantly to sustainability and cost-efficiency, making them a preferred technology for future-oriented projects.
Selecting the Right Dry Cooler
Selecting the right dry cooler is crucial for the efficiency and cost-effectiveness of your cooling systems. A dry cooler, particularly in its adiabatic or hybrid versions, is a long-term investment that should be carefully planned to ensure the best possible performance for your specific application. It is important to consider not only the initial purchase cost but also the operating costs and long-term reliability of the unit. A properly selected dry cooler can significantly help reduce energy consumption and extend the service life of your entire plant by ensuring stable and efficient process cooling.
Key Selection Criteria
When selecting a dry cooler, several key criteria must be considered to ensure that the chosen unit is optimally suited to your requirements. First, the required capacity range is of great importance; this can range from 200 kW up to 20 MW, depending on the thermal load that needs to be dissipated. Environmental conditions also play a significant role, as they influence the dry cooler’s efficiency. Additionally, the fan’s noise level should be considered, especially if the dry cooler is installed near residential areas or offices. The ability to regulate airflow and the system’s flexibility to adapt to varying humidity levels are also relevant factors. The quality of components such as heat exchangers, pipes, and the galvanized steel housing contributes significantly to durability and reliability.
The Role of Energy Efficiency
Energy efficiency is a key factor in selecting an industrial dry cooler and plays a central role in reducing operating costs. An energy-efficient dry cooler minimizes energy consumption—particularly that of the fans—and thus helps lower electricity bills. Modern dry coolers are equipped with highly efficient fans and optimized heat exchangers that maximize heat exchange and thus increase the efficiency of the entire chiller system. Adiabatic pre-humidification technology can further increase efficiency by pre-cooling the intake air, ensuring optimal cooling even at high outdoor temperatures. Investing in an energy-efficient unit pays off in the long term through lower operating costs and an improved environmental footprint, especially when using Mita Cooling Technologies.
Tips for sizing dry coolers
The correct sizing of a dry cooler is crucial for its optimal performance and cost-effectiveness. First, the maximum heat load that the dry cooler must dissipate must be determined, often measured in kW or MW. Be sure to account for peak loads and future expansions. Second, the maximum ambient temperatures and humidity at the installation site are important, as they significantly influence the performance of the adiabatic system. Third, the available space (footprint) for the dry cooler should be considered to ensure that the unit physically fits and that there is sufficient space for maintenance and airflow. Precise sizing ensures that the dry cooler is neither undersized nor oversized, both of which can lead to inefficiencies.
Technical Aspects of Adiabatic Dry Coolers
Operating principle of adiabatic dry coolers
Adiabatic dry coolers are characterized by a sophisticated operating principle that significantly increases cooling efficiency. Before the outside air reaches the dry cooler’s heat exchanger, it is pre-humidified by a system of fine water mist or humidification pads to maximize the cooling capacity of the air-cooled systems. This process utilizes the evaporative cooling effect of the water to significantly lower the temperature of the intake air even before it begins the actual cooling process in the heat exchanger. This enables the dry cooler to achieve more efficient heat dissipation, particularly at high ambient temperatures, while simultaneously optimizing the energy efficiency of the entire chiller. The fluid circulating in the dry cooler’s circuit is thus maintained at an optimal temperature level even under demanding environmental conditions.
Maintenance and Care of Dry Coolers
Regular maintenance and careful care are crucial for the long service life and continuous efficiency of a dry cooler. It is essential to regularly inspect and clean the heat exchangers and pipes for deposits or contamination to ensure optimal heat transfer. The condition of the fans responsible for airflow should also be routinely inspected to ensure energy-efficient operation of the air-cooled systems. In adiabatic dry coolers, maintenance of the humidification system is also of great importance to prevent scale buildup and guarantee uniform pre-humidification. A well-maintained dry cooler not only reduces energy consumption but also minimizes the risk of costly downtime and helps maintain process cooling.
Innovations in Cooling System Technology
Cooling system technology, particularly in the field of dry coolers, is undergoing continuous innovation aimed at improved energy efficiency, reduced noise levels, and greater flexibility. Current developments include, for example, the integration of intelligent controls that can precisely adjust the airflow and adiabatic pre-humidification to ambient conditions in order to further optimize energy consumption. Advances in materials, such as high-performance heat exchangers and robust galvanized steel housings, increase the reliability and service life of the units. In addition, modern hybrid dry coolers offer even greater adaptability by switching between dry and adiabatic operation as needed, making them an extremely versatile solution for a wide variety of industrial processes and applications.
Practical Tips and Expert Insights
Optimizing cooling systems
Optimizing cooling systems based on a dry cooler is crucial to ensuring maximum efficiency and minimal operating costs. According to expert insight, precise control of airflow and liquid temperature can significantly reduce energy consumption. The use of variable-speed fans allows these parameters to be finely adjusted to match the specific thermal load, thereby optimizing energy usage. In addition, the integration of adiabatic systems can significantly increase cooling capacity at high outdoor temperatures by pre-cooling the outside air. Regular maintenance, such as cleaning the heat exchangers and inspecting the pipes, also helps maintain the high efficiency of the coolers throughout their entire service life and ensures reliable process cooling.
Avoiding Errors with Dry Coolers
To avoid errors during the installation and operation of dry coolers, careful planning and execution are essential. A common mistake is incorrect sizing of the dry cooler, which leads to either underloading or overloading the unit, thereby compromising energy efficiency and service life. It is crucial to consider the exact power range (e.g., 200 kW to 20 MW) and the environmental conditions at the installation site. Another critical point is ensuring unobstructed airflow to the fan, as blocked intake or exhaust areas can drastically reduce the dry cooler’s cooling capacity. Regular inspections and adherence to maintenance schedules help identify problems early and prevent costly repairs, while keeping noise levels within acceptable limits.
FAQs on Dry Cooling
Table of contents
- How does adiabatic dry cooling work?
- What are the advantages of adiabatic dry coolers?
- How do you select the right cooler for a cooling system?
- What is the difference between a recirculating cooler and a dry cooler?
- What role does the heat exchanger surface play in a dry cooler?
- How do dry coolers work in industrial applications?
- What energy savings are possible with an adiabatic dry cooler?
- When should an adiabatic dry cooler be shut down?
- What is the service life of an adiabatic dry cooler?
- What are the best practices for optimizing a cooling system with dry coolers?
How does adiabatic dry cooling work?
Adiabatic dry cooling uses the evaporation of water to lower the air temperature, making the cooling process more efficient and minimizing energy consumption. This innovative technology allows the temperature of the cooled liquid to be regulated through the targeted use of air and water, without requiring large amounts of cooling water. This not only significantly reduces water consumption but also increases energy efficiency, which is crucial in many industrial applications. Dry coolers based on this principle are particularly environmentally friendly and help reduce operating costs while minimizing environmental impact. This makes them an ideal solution for companies that want to consider both economic and ecological aspects in their production processes.
What are the advantages of adiabatic dry coolers?
Adiabatic dry coolers offer numerous advantages that make them an attractive choice for many industries. Among the main advantages is energy-efficient cooling, which makes it possible to significantly reduce operating costs. These systems use the evaporation of water to lower the air temperature, thereby requiring less energy for cooling. This reduced energy consumption not only leads to lower electricity bills but also to reduced CO2 emissions, making them an environmentally friendly solution. Furthermore, adiabatic dry coolers are particularly well-suited for applications requiring reliable and consistent climate control, such as in large warehouses, data centers, or the food industry. Their ability to operate efficiently even at high outdoor temperatures expands their range of applications and makes them an excellent choice for various industrial and commercial needs.
How do you select the right cooler for a cooling system?
When selecting a dry cooler for a cooling system, numerous factors must be carefully considered to ensure the right decision is made. First, the required cooling capacity is a critical criterion, as it is directly related to the efficiency and performance of the entire cooling system. In addition, available space plays a significant role, as not every cooler fits into every available space, particularly in confined or specialized environments. Energy efficiency is also important, as it not only affects operating costs but also reduces environmental impact. Furthermore, the specific requirements of the respective application, such as the type of media being cooled or the ambient conditions, should be factored into the decision. It is advisable to thoroughly compare the features of different models to find the best option. In doing so, it can be helpful to examine the technical specifications and performance data of the various dry coolers in detail. In many cases, it is also advisable to seek expert advice to ensure that all relevant aspects are considered and that the choice of cooler is optimally tailored to individual needs.
What is the difference between a recirculating cooler and a dry cooler?
A recirculating cooler is typically a water-based cooling system that uses water for cooling to regulate the temperature in industrial processes or buildings. These systems are designed to efficiently dissipate heat by circulating water through cooling coils that release heat into the environment. In contrast, a dry cooler achieves cooling through air and evaporation by passing air over special cooling surfaces. These cooling surfaces are often coated with a special material that maximizes heat transfer while promoting water evaporation. Dry coolers are often more energy-efficient than conventional cooling systems because they consume less water, which is not only more environmentally friendly but also reduces operating costs. In certain applications, such as in the chemical industry or metal processing, dry coolers can even deliver better results, as they ensure consistent and reliable cooling, which is crucial for maintaining optimal operating conditions. Furthermore, dry coolers are often easier to maintain and require less space, making them an attractive choice for many companies seeking effective and sustainable cooling solutions.
What role does the heat exchanger surface play in a dry cooler?
The surface area of the heat exchanger plays a crucial role in the efficiency of a dry cooler. A larger surface area is not only advantageous but also enables significantly better heat transfer between the cooled fluid and the surrounding air. This improved heat transfer results in substantially higher cooling capacity, which is of great importance for many industrial applications. Optimizing cooling capacity can also significantly reduce energy consumption, yielding both economic and environmental benefits. In today’s world, where energy efficiency and sustainability are becoming increasingly important, selecting a dry cooler with an optimally sized heat exchanger surface area is a key factor in lowering operating costs while minimizing environmental impact. Therefore, companies that rely on dry coolers should carefully ensure that the systems they use are not only technically mature but also capable of achieving maximum efficiency to meet both their operational goals and their sustainability commitments.
How do dry coolers work in industrial applications?
Dry coolers are indispensable components in numerous industrial applications, as they provide effective cooling for machinery and various processes. These cooling systems are particularly advantageous when a constant temperature must be maintained, which is crucial in many production environments. Furthermore, they help significantly minimize water consumption, bringing both economic and environmental benefits. Their design allows them to operate efficiently even at extremely high outdoor temperatures, making them an excellent solution for many industries. Dry coolers are used in particular in food processing, the chemical industry, and the mechanical engineering sector to increase plant performance and prevent downtime due to overheating. The versatility of these cooling systems and their adaptability to different operating conditions make them a preferred choice for companies that prioritize efficiency and reliability. Dry coolers are thus not only a technical solution but also an important component of sustainable production processes that help optimize resource consumption and reduce operating costs.
What energy savings are possible with an adiabatic dry cooler?
Adiabatic dry coolers can offer significant energy savings, particularly in hot climates where conventional cooling systems often reach their limits and consume little cooling water. These innovative cooling systems utilize the principles of evaporation for cooling, which means they specifically humidify the ambient air and thereby effectively lower the temperature. This process can significantly reduce energy consumption compared to conventional cooling systems, which not only leads to lower operating costs but also has a positive impact on the environment by reducing overall energy demand. Companies operating in hot regions have the opportunity to increase their efficiency while operating more sustainably through the use of adiabatic dry coolers. The use of such systems is particularly advantageous because they are capable of ensuring consistent cooling performance even at high outdoor temperatures, thereby increasing operational reliability. Thus, adiabatic dry coolers represent a forward-looking solution that offers both economic and environmental benefits and is perfectly suited for modern industrial applications.
When should an adiabatic dry cooler be shut down?
An adiabatic dry cooler should be shut down when outdoor temperatures are very low, as evaporation is not efficient under these conditions. In cold outdoor temperatures, the dry cooler’s performance can be significantly impaired, leading to inefficient operation. In such situations, it is advisable to temporarily shut down the dry cooler to prevent damage and reduce operating costs. It is also recommended to shut down the cooler during maintenance work or during prolonged periods of non-use to save energy. This not only helps reduce energy consumption but also extends the unit’s service life by protecting it from unnecessary wear and tear. A well-maintained and efficiently operated dry cooler can play a crucial role in optimizing the entire cooling system and thus further reducing operating costs. Therefore, it is important to follow these practical tips and take appropriate measures to ensure the efficiency and longevity of the dry cooler.
What is the service life of an adiabatic dry cooler?
The service life of an adiabatic dry cooler is a crucial factor in the overall efficiency and cost-effectiveness of a cooling system. This service life is influenced by various important factors, both technical and operational in nature. First, the quality of the materials used plays a central role; high-quality materials that are corrosion-resistant and durable can significantly extend the service life of the dry cooler. In addition, the operating conditions under which the dry cooler is used are of great importance. Extreme temperatures, high humidity, or dust exposure can impair functionality and lead to faster wear and tear. Another key aspect is maintenance practices, which should be performed regularly. Careful and regular maintenance, including inspection and cleaning of the components, ensures that the dry cooler remains in optimal condition. With proper care and consistent maintenance, these coolers can operate efficiently for many years and maintain their performance over time. Therefore, it is crucial to consider the factors mentioned to maximize the service life of an adiabatic dry cooler and minimize operating costs.
What are the best practices for optimizing a cooling system with dry coolers?
To effectively optimize a cooling system with dry coolers, it is of the utmost importance to perform regular maintenance on the dry coolers to ensure optimal energy efficiency. This maintenance is not only crucial for the longevity of the equipment but also for ensuring consistent and efficient cooling performance. In addition, the operating conditions of the dry coolers should be continuously monitored to ensure they are always operating under optimal conditions. In the event of deviations from the ideal parameters, it is necessary to make immediate adjustments, whether by adjusting fans or by checking the coolant flows. It is also advisable to select the coolers according to the specific requirements of the respective application to achieve the best possible performance. This means that the selection of dry coolers should not be arbitrary but must be based on a thorough analysis of the system’s needs. Furthermore, the energy efficiency of the dry coolers should be regularly checked to ensure that the systems not only operate effectively but are also energy-efficient. Regular monitoring can help identify potential weaknesses early on and take appropriate measures for improvement.
