KSK Hot Gas Pipe

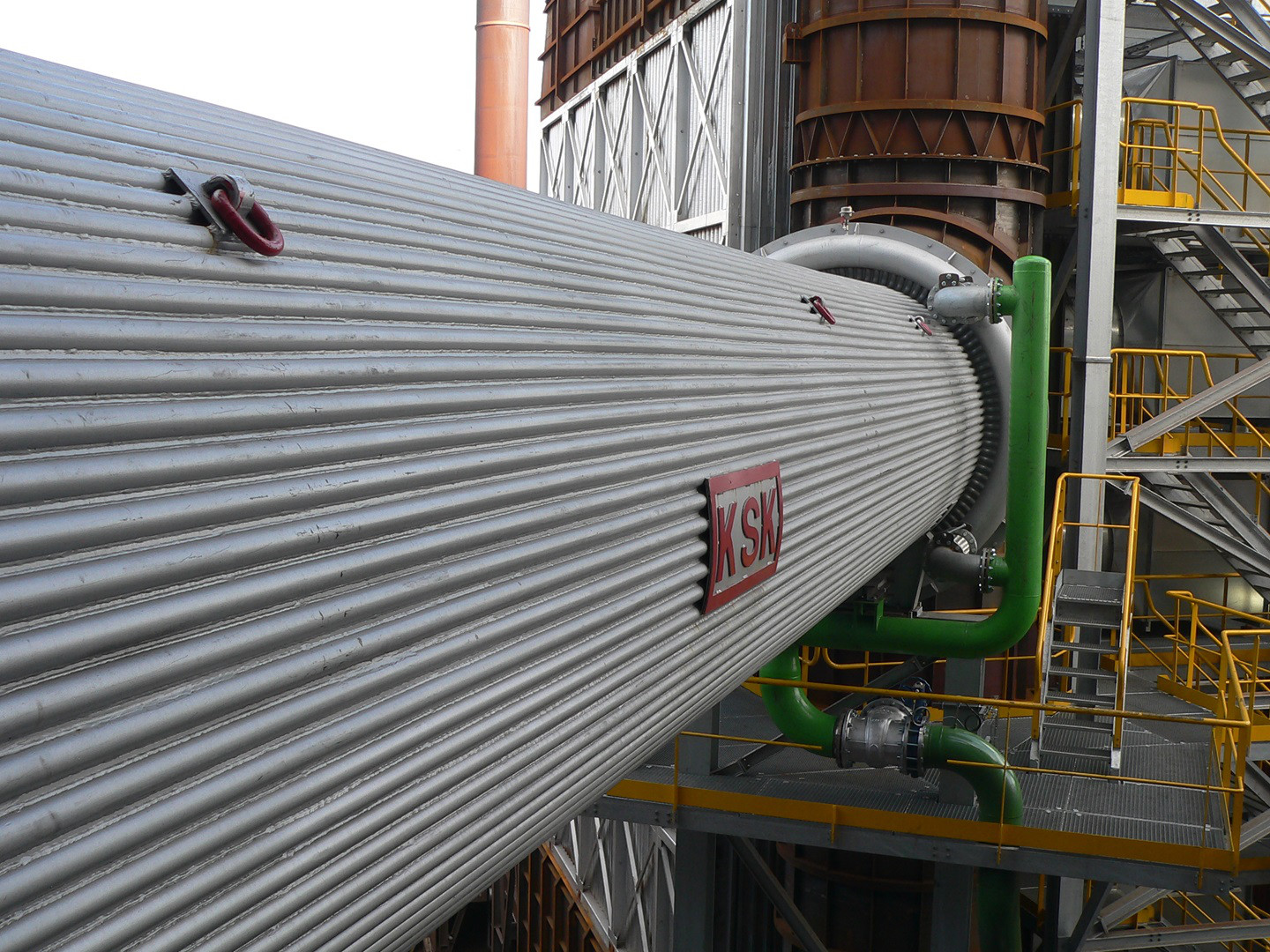

To safely and efficiently extract thermal energy from hot exhaust gases generated by melting and recycling processes, we have been developing and manufacturing water-cooled hot gas ducts for more than 40 years. Our designs and constructions have been tried and tested in practice many times and consistently guarantee the desired temperature level at the transition to the connected process. Our hot gas ducts always meet our six quality criteria and are clear, functional, innovative, precisely fitted, maintenance-friendly, and economical.

Robustly constructed.

In the melting and recycling processes of energy-intensive heavy industry, exhaust gases with a wide variety of chemical components and dust particle sizes are produced. Our hot gas ducts are always tailored to your specific process to withstand corrosion, abrasion, and other damaging influences as robustly and durably as possible. While most KSK hot gas ducts are designed as pipe constructions, even here the details matter—such as material properties, cooling water temperature, or cooling water routing.

Custom-designed.

We love working with pipes—that’s no secret. However, special requirements often call for special solutions. That’s why sheet metal constructions with welded-on “pipe half-shells” or special double-wall constructions are not uncommon for us. These designs feature a completely smooth inner surface and, under certain conditions, can also be cooled efficiently and safely. Feel free to contact our experts for further details!

Steam cools.

Many of our KSK hot gas ducts are used as cold or hot water sections. They are designed so that the temperature of the cooling water remains reliably below 100 °C when absorbing the transferred heat energy. However, steam or hot water (at high system pressure) are also suitable as cooling media and are regularly used in KSK hot gas ducts. A high temperature level naturally offers the opportunity to use or extract the heat energy absorbed by the cooling medium more efficiently for further processes. Would you also like to utilize the waste heat from your processes? Feel free to contact us directly!

Your contacts

Olaf Huscher, Dipl.-Ing.
Partner and Managing Director

+49 (0) 2364 10539-0
huscher@kskgruppe.de

Andreas Höwedes, M.S. in Industrial Engineering
Partner and Managing Director

+49 (0) 2364 10539-0
hoewedes@kskgruppe.de

What is a hot gas duct in the context of electric arc furnaces (EAF)?

A hot gas duct is a specialized duct used in steel production to vent hot exhaust gases from an electric arc furnace (EAF). These ducts play a crucial role in the safe and efficient operation of an EAF, as they ensure that excess gases, such as carbon dioxide (CO2) and carbon monoxide (CO), can be safely and effectively removed from the furnace. Without a properly functioning hot gas duct, a dangerous buildup of gases and overheating of the furnace could occur, which would not only endanger employee safety but could also result in significant damage to the plant. Therefore, the design and maintenance of these ducts are of the utmost importance. The materials used to manufacture hot gas lines must withstand extreme temperatures and aggressive chemical conditions and should also be corrosion-resistant to ensure a long service life and reliability during operation. In practice, special alloys and coatings are often used to meet the requirements for heat resistance and chemical stability. These technical requirements make hot gas lines an indispensable component of modern steel production and contribute significantly to the efficiency and safety of the entire production chain.

Why are hot gas ducts important for safety in steel production?

Hot gas ducts are crucial for safety in steel production because they vent the hot and potentially hazardous exhaust gases from the electric arc furnace. These ducts play a vital role, as without effective venting, these gases could remain in the production area and pose a serious danger to employees. The gases generated in the steel industry are not only hot but also toxic, meaning that inadequate venting can lead to dangerous situations. High concentrations of CO2 and CO contained in the exhaust gases could lead to poisoning risks and thus endanger the health of employees. It is therefore of the utmost importance that hot gas lines are properly designed and maintained. A well-designed hot gas line thus helps minimize these risks and ensure safe operation. In addition to employee safety, such systems also contribute to the efficiency of the production process by ensuring that exhaust gases are removed quickly and effectively. In steel production, where high temperatures and aggressive chemicals are prevalent, it is essential that hot gas lines be regularly inspected and maintained to guarantee their functionality and safety. Ultimately, proper handling of hot gas lines contributes not only to safety but also to the productivity and sustainability of the entire production process.

What materials are used for hot gas lines?

Materials capable of withstanding both high temperatures and chemical corrosion are typically used for hot gas lines. These include special alloy steels known for their resilience and durability. The choice of material depends on the specific conditions within the electric arc furnace, including the maximum operating temperature that can be reached and the type of gases that need to be transported. These factors play a crucial role in ensuring the efficiency and safety of the entire system, as an incorrect choice of material can lead to serious problems. It is therefore necessary to conduct careful testing and analysis to select the most suitable material that meets the requirements of the specific application while ensuring a long service life for the hot gas lines. Such considerations are particularly important in industrial applications, where operating temperatures can be extremely high and continuous performance is required to maintain uninterrupted operation.

How is the efficiency of hot gas ducts measured?

The efficiency of hot gas lines is measured based on several factors that are critical to the performance and reliability of these systems. This includes, in particular, the ability to discharge hot gases quickly and safely, which is essential in many industrial applications. Additionally, the durability of the line under extreme operating conditions plays a crucial role, as hot gas lines are often exposed to extreme temperatures and pressures. To ensure long-term and reliable operation, these lines must be manufactured from high-quality materials that are both heat-resistant and corrosion-resistant. Ease of maintenance is also an important factor, as regular inspections and maintenance are required to ensure that the hot gas lines remain in perfect condition. The costs of repairs and replacements must also not be overlooked, as they can significantly impact the overall efficiency and cost-effectiveness of an operation. An efficient hot gas line thus not only helps reduce operating costs but also increases production efficiency by enabling smooth and continuous operation. In summary, it is clear that all the factors mentioned are closely interlinked and together determine the overall performance and cost-effectiveness of hot gas lines.

What role does heat recovery play in hot gas ducts?

Heat recovery is a key aspect of using hot gas lines, as it not only helps save energy but also significantly reduces environmental impact. In industrial processes where large volumes of hot gas are generated, it is crucial not to let this energy escape unused. By integrating modern heat exchangers, the hot exhaust gases can be effectively utilized to recover thermal energy. This recovered heat can then be used in various parts of the production process, for example, to heat rooms or to support other thermal processes. This not only leads to improved energy efficiency but also helps to significantly reduce operating costs. Companies that use hot gas lines in combination with heat recovery systems can also reduce their CO2 emissions, which in turn has a positive impact on corporate image and compliance with environmental standards. Given rising energy prices, the implementation of such systems is increasingly important for remaining competitive and promoting sustainable practices.

How are hot gas lines maintained and inspected?

The maintenance and inspection of hot gas lines are crucial for ensuring their efficiency and safety. Regular inspections help identify potential problems early on, such as cracks or corrosion. These inspections should be conducted at set intervals to ensure that the hot gas lines remain in optimal condition. Maintenance work often involves cleaning the lines, checking seals and connections, and replacing damaged parts. It is important that the materials used are of high quality to prevent future problems. A well-planned maintenance cycle can extend the service life of hot gas lines and minimize downtime. Furthermore, thorough maintenance also contributes to improved operational efficiency, which not only saves costs but also reduces environmental impact. Companies should therefore ensure that qualified personnel are responsible for these maintenance tasks and that all activities performed are properly documented to ensure complete traceability. A proactive maintenance strategy is key to preventing unexpected disruptions and ensuring smooth operation.

What are the challenges involved in installing hot gas lines?

Installing hot gas lines in an electric arc furnace presents several challenges that require both technical knowledge and practical experience . Among the most important aspects is the need to correctly size the lines to efficiently control gas flow and ensure optimal furnace performance. Incorrect sizing can lead to both insufficient gas supply and overpressure, which can have serious consequences for furnace operation. Furthermore, it is essential that the hot gas lines withstand the extremely high temperatures generated during the melting process. These temperatures can often reach several hundred degrees Celsius, which is why special materials and construction techniques are required to ensure the integrity of the lines throughout the entire operating cycle. Another important aspect is the accessibility of the lines for maintenance work. The installation should be planned so that the lines are easily accessible without disrupting the production process. Careful planning and execution of these installations are crucial to overcoming these challenges and guaranteeing the efficiency and safety of the entire system. It is therefore advisable to involve experts in the planning and implementation to ensure a smooth and successful installation of the hot gas lines.

How does the design of the hot gas duct affect environmental sustainability?

The design of the hot gas duct can have a significant impact on the environmental sustainability of an electric arc furnace. By implementing emission reduction technologies, such as filter and cleaning systems, harmful emissions can be reduced. These systems are crucial for improving air quality and ensuring compliance with environmental standards. Furthermore, it is important that the hot gas duct is designed to efficiently vent exhaust gases to ensure optimal furnace performance. Additionally, efficient heat recovery helps reduce energy consumption, which in turn improves the company’s carbon footprint. In today’s world, where climate protection plays an increasingly important role, it is essential that companies develop innovative solutions to minimize their environmental impact. Designing the hot gas duct to be environmentally friendly is therefore an important step toward sustainable steel production. This involves not only technical improvements but also careful planning and consideration of the entire production chain to ensure that all aspects of manufacturing are environmentally sound. By combining state-of-the-art technology with a clear focus on sustainability, companies can not only increase their competitiveness but also make a valuable contribution to protecting the environment.

How can the service life of hot gas lines be maximized?

The service life of hot gas lines can be maximized through a combination of high-quality material selection, regular maintenance, and advanced monitoring. The careful selection of materials that are both heat-resistant and corrosion-resistant plays a crucial role in maintaining the physical integrity of the lines over an extended period. If inferior-quality materials are used, this can lead to premature aging and weakening of the lines, which can ultimately result in dangerous and costly failures. Regular inspections and maintenance are essential to prevent serious damage from occurring. These inspections should include not only visual checks but also detailed diagnostic procedures to identify potential weaknesses early on. Additionally, modern monitoring systems capable of tracking the condition of the pipelines in real time can significantly contribute to safety. These systems use advanced sensors and algorithms to detect changes in the condition of the lines, allowing for an early response to potential problems. A proactive approach to maintenance and monitoring is crucial to ensuring the efficiency and safety of hot gas lines and preventing long-term issues.

What is a hot gas duct in the context of electric arc furnaces (EAF)?

A hot gas duct in an electric arc furnace (EAF) is a specialized duct designed to vent the hot exhaust gases generated during the melting process from inside the furnace. These ducts are critical for the efficient venting and treatment of emissions produced at high temperatures. They play a central role in ensuring operational safety, as they prevent hazardous gases from remaining in the furnace and potentially causing health hazards to workers. Furthermore, hot gas ducts are designed to withstand the extreme thermal conditions that occur during the melting process. The use of high-quality materials ensures that they are durable and resilient. These ducts help optimize process performance and comply with environmental regulations by ensuring that exhaust emissions are properly captured and treated. Efficient operation of these systems is not only important for product quality but also for minimizing the environmental footprint of the entire production facility. In many modern electric arc furnaces, the hot gas ducts are integrated in such a way that they can also be combined with modern exhaust gas cleaning systems to further reduce environmental impact.

What materials are typically used for hot gas ducts?

Hot gas ducts are essential components in many industrial applications, particularly in metal processing and power generation. These ducts are typically made from high-temperature-resistant materials capable of withstanding the extreme conditions inside an electric arc furnace (EAF). It is particularly important that the materials not only withstand high temperatures but also the aggressive chemical properties of the hot gases generated during operation. Commonly used materials include special alloys that are resistant to corrosion and wear caused by the hot gases. These alloys can consist of various metal combinations specifically developed to ensure a long service life and high reliability. The choice of material depends on various factors, including specific temperature resistance, the expected service life of the line, and the costs of manufacturing and installation. Engineers and technicians must therefore carefully evaluate which material is best suited for the specific application to ensure both efficiency and safety.

How does the hot gas duct contribute to the energy efficiency of an EAF?

The hot gas duct plays a crucial role in improving the energy efficiency of an electric arc furnace (EAF). It is responsible for effectively venting the hot exhaust gases generated during the production process. This venting is not only important for maintaining a clean and safe environment in the plant but also for enabling effective heat recovery. By utilizing modern heat recovery systems, the discharged hot gases can be efficiently utilized. These systems are designed to recover the heat that would normally be lost and use it in other processes within the plant. This not only leads to a significant reduction in overall energy consumption but also helps lower operating costs. By optimizing the hot gas line, companies can not only increase their energy efficiency but also improve their environmental footprint, which is of great importance in today’s world. While the implementation of such systems requires an initial investment, the long-term savings and benefits far outweigh the costs, making the hot gas line an indispensable component of a modern and sustainable production process.

What safety considerations must be taken into account when maintaining hot gas lines?

When maintaining hot gas lines, it is crucial to ensure the integrity of the line and the tightness of the connections to prevent leaks of hot gases, which can pose significant safety risks. Hot gas lines often carry extremely high temperatures, and even the smallest leaks can lead to dangerous situations that endanger not only the plant itself but also the safety of workers. Regular inspections and maintenance are therefore necessary to ensure that all components of the hot gas lines are in perfect condition and to identify and resolve potential issues early on. Implementing a structured maintenance plan that includes both preventive and corrective measures helps ensure worker safety and the efficiency of the entire plant. When working on these lines, it is essential to wear appropriate protective clothing and follow all necessary safety measures to significantly minimize the risk of injuries and accidents. This includes, among other things, wearing protective gloves, safety goggles, and heat-resistant materials to protect against the potential hazards associated with the maintenance and inspection of hot gas lines. In addition, all employees involved in this work should receive comprehensive training to ensure they are familiar with and can apply best practices regarding safety and efficiency.

What role does the hot gas line play in emissions control?

Hot gas ducts are critical for emission control, as they effectively remove exhaust gases from the melting process and enable their treatment before they are released into the environment. These ducts play a central role in industry, particularly in metal processing, where high temperatures and corrosive gases are generated. By using filters and other purification technologies in conjunction with hot gas ducts, harmful emissions can be reduced and legal environmental standards met. The proper operation and maintenance of these systems are of great importance, not only to protect the environment but also to ensure the health of workers employed in these facilities. In addition, hot gas ducts help increase the efficiency of production processes by recovering waste heat and making it reusable. In a world increasingly focused on sustainability, modern hot gas ducts are indispensable for implementing environmentally friendly production methods and minimizing the industry’s ecological footprint.

How does the hot gas duct influence process control in the EAF?

The hot gas duct plays a crucial role in process control in the electric arc furnace (EAF) by not only regulating the exhaust gas flows but also continuously monitoring their temperature. This monitoring and regulation are essential for optimizing the melting processes and ensuring the high quality of the final product. Precise control of these parameters makes it possible to detect deviations early on and respond accordingly, which in turn improves the efficiency of the entire melting process. Furthermore, a well-designed hot gas duct ensures that the various components of the EAF work together harmoniously, leading to greater stability and improved productivity. Through the targeted use of modern technologies and materials in the design of the hot gas duct, operating costs can be further reduced and the environmental impact minimized, which is of great importance in today’s industrial context. Ultimately, the hot gas duct thus not only contributes to the efficiency and stability of the melting process but also plays a key role in optimizing the entire production chain in the electric arc furnace steel mill.

What challenges are involved in installing hot gas lines?

The installation of hot gas lines requires extremely careful planning and precise execution to ensure that the lines can withstand the extreme operating conditions under which they are used. These conditions can be very demanding, which is why it is crucial that all aspects of the installation are thoroughly considered. Among the challenges to be overcome is, in particular, the selection of the right material, which must withstand not only high temperatures but also pressure-related stresses. Furthermore, it is important to account for the thermal expansion of the materials, as this can lead to significant stresses at high temperatures that jeopardize the integrity of the pipes. A tight seal at all joints is essential to prevent leaks, which not only impair the system’s efficiency but can also create potentially dangerous situations. In addition, the hot gas lines must be routed in such a way that they are easily accessible for maintenance work when needed. This means that future access to the lines for repairs and inspections must also be taken into account when planning the installation to ensure smooth operation throughout the plant’s entire service life.

How does the design of the hot gas duct affect the service life of an EAF?

The design of the hot gas duct has a direct impact on the service life of an electric arc furnace (EAF), as it significantly influences not only the thermal loads but also the general wear and tear of the furnace. A well-designed hot gas duct minimizes the thermal impact on the furnace structure and also ensures a more uniform temperature distribution. This reduces the risk of damage caused by thermal shocks, which is of great importance for the integrity of the entire system. When the hot gas duct is optimally designed, it not only helps extend operating time but also leads to a significant reduction in maintenance costs. In the long term, careful planning and execution of the hot gas duct are essential for increasing the efficiency of EAF processes and minimizing operating costs. Therefore, during design, special attention should be paid to material selection and flow conditions to ensure maximum furnace performance and reliability.

What modern technologies are used in the development of hot gas ducts?

Modern technologies in the development of hot gas ducts include the use of computer-aided simulation models to analyze and optimize thermal and mechanical stresses. These models enable engineers to run through various scenarios to find the best design solutions and identify potential weak points early on. In addition, advanced materials and coatings are being developed that significantly improve the service life and efficiency of the ducts. These innovative materials are not only more resistant to high temperatures but also corrosion-resistant, which facilitates their use in demanding environments. Sensors for monitoring temperature and pressure play a crucial role in monitoring operations in real time and optimizing performance. Through the use of IoT technologies, these sensors can transmit data in real time, enabling an immediate response to changes in the system. In the long term, such developments lead to greater operational safety and efficiency in the industry, as they help to detect and resolve potential problems early on before they lead to costly outages.

Why is regular inspection of hot gas lines important?

Regular inspections of hot gas lines are critical to ensuring both the safety and efficiency of electric arc furnace (EAF) operations. These inspections are not only a legal requirement but also an essential part of a proactive maintenance strategy. Through regular inspections, potential problems, such as cracks or corrosion, can be detected early and addressed before they lead to serious operational disruptions or dangerous safety risks. A thorough inspection includes checking for material fatigue, analyzing temperature and pressure readings, and visually inspecting the entire line. In addition, a well-documented inspection history enables informed planning of maintenance work and contributes to optimizing plant utilization. This documentation not only helps keep track of maintenance measures performed but also identifies trends and recurring issues that may point to deeper, underlying causes. By investing in regular inspections, companies can extend the service life of their hot gas lines while minimizing operating costs, which ultimately leads to higher overall productivity.
